Plastic Re-Processing Machines

Plastic Recycling Machine

Features

  • Low Power Consumption
  • Fast Return on Investment
  • Outstanding Output
enquire now

Description:

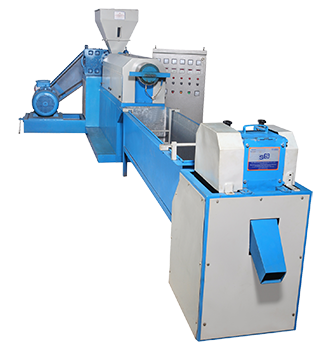

Re-cycling Pellitizer Extrusion Plant to manufacture poly waste granuals, consisting of single screw extruder with AC main drive motor, reduction gear box, screw & barrel made of nitro alloy steel duly nitride and hardened, Die Head, Bend type heaters, Water tank, Pellitizer with electric motor and control cabinet fitted with temperature controllers, voltmeters, ammeters, starters etc. and all other standard accessories and electricals as detailed in specifications.

Specifications:

Model RP-65 RP-75 RP-90 RP-100 RP-120 RP-140
Screw Size (MM) 65 75 90 100 120 140
L/D Ratio 26 : 1 26 : 1 26 : 1 26 : 1 26 : 1 26 : 1
Output (Kg/Hr.) 50-60 60-80 90-120 100-150 200-250 300-350
Main Drive (HP) 15 20 25 30 50 75
Heating Load (KW) 12 18 22 28 32 36
Strand Pellitizer (HP) 1 2 2 2 3 5
