BLOWN FILM MACHINES

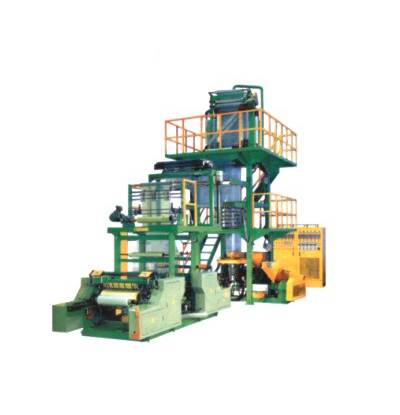

Multilayer Blown Film Machine

Features

  • Film With High Strength & Resistance
  • Low Power Consumption
  • Fast Return on Investment
  • Outstanding Output
  • Multilayer layer Film
enquire now

Description:

We offer a diverse range of customized 3 Layer Blown Film Machines to suit a customer's specific requirement. Our most appreciated Multilayer Blown Film Machines are available with outputs ranging from 70 kgs/hr. to 500 kgs./hr. and lay-flat widths ranging from 100mm to 2000mm for processing polymers as LD, LLD, HDPE ETC.

Multilayer Blown Film Machines incorporate advanced features like grooved feed barrel. Barrier screw, dosing system, Liquid PIB dosing system, manual as well as automatic screen changer, Rotating Die / platform/ Haul-off Unit, internal bubble cooling, automatic bubble cage, online thickness monitoring and control, 2/4 station surface and center winders, Auto Tension Control, Corona Treaters etc. for longer life, higher productivity and better quality.

Applications:

    APPLICATIONS OF FILM

  • Garbage Bags
  • Carry Bags
  • Shopping Bags
  • Linears
  • Construction Film
  • Milk Packaging
  • Green House FilmFilm

Specifications:

Model SS 3L-1000 SS 3L-1250 SS 3L-1500 SS 3L-2000
Screw Dia Size (MM) 35/ 45/ 35 50/ 50/ 50 55/ 65/ 55 65/ 90/ 65
Layflat Film Width (MM) 300 - 1000 400 - 1250 500 - 1500 600 - 2000
Film Thickness (Micron) 10-200 20-200 20-300 20-400
Max. Extrusion Output (Kg/hr) 150. 200 250 320
Machine Dimension (Mtrs.) L-7 x W-4.5 x H-7 L-8 x W-6 x H-9 L-8.3 x W-6.2 x H-9.4 L-9.5 x W-6.5 x H-9.5
